The D-RTK 3 Multifunctional Station is an advanced drone accessory designed to deliver unmatched precision and versatility. With integrated high-performance antennas and receiver modules, it tracks and resolves data from global satellite navigation systems for accurate positioning and connectivity for demanding applications.
A standout feature of the D-RTK 3 is its support for multiple data transmission links. Coupled with a high-performance inertial measurement unit (IMU), the station delivers precise position and orientation analysis. Whether used as a base station or relay station, it provides centimeter-level positioning accuracy. As a base station, it enhances productivity by supporting multiple drones simultaneously, while in relay mode, it extends operational range and strengthens communication.
The innovative rover station mode further expands its capabilities. Paired with the DJI Enterprise app and DJI Terra, this mode offers a comprehensive solution for high-precision aerial surveying. This integration simplifies workflows and ensures efficient, accurate data collection in challenging conditions, making the D-RTK 3 indispensable for industries like construction, agriculture, surveying, and public safety.
Highlights
-
Serves as a base station to provide centimeter-level positioning for multiple drones simultaneously.
-
Functions as a relay station to extend the operational range of drones.
-
Features a new rover station mode for high-precision aerial surveying when paired with DJI ENTERPRISE app and DJI Terra.
Specifications
GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Station Mode Accuracy
Static Measurement
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement
Angle Range: 0°to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)
FCC:
15 km between the aircraft and the relay station
1 km between the relay station and the remote controller
SRRC:
12 km between the aircraft and the relay station
1 km between the relay station and the remote controller
CE:
8 km between the aircraft and the relay station
300 m between the relay station and the remote controller
Protection Rating: IP67 (station only)
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight: 1.26 kg

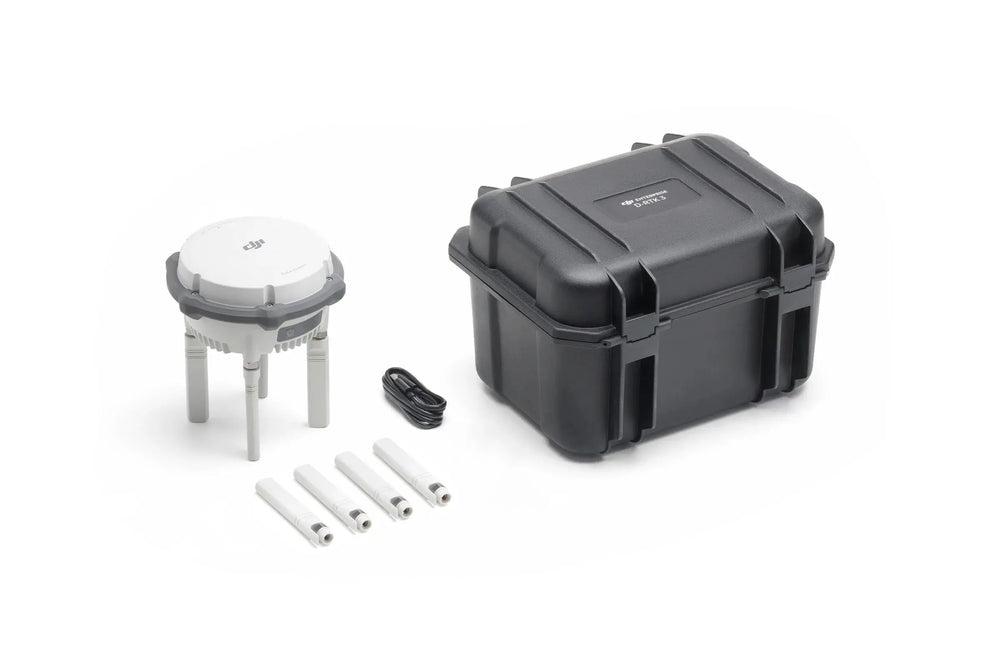

In The Box
D-RTK 3 Multifunctional Station × 1
Spare OcuSync Directional Antennas × 4
USB-A to USB-C Cable× 1
